ANY AIR 2

01 · About MDX

A dental engineering
heritage.

×

MDMED has long supported Korea's dental chair and surgical table industry — a manufacturer of hydraulic systems (pumps, solenoid valves, cylinders) and dental apparatus (3-way syringes, HVE, saliva-ejectors). Many Korean dental chair makers build on MDMED components. That trust has taken decades to earn.

MDX is MDMED's compressor and vacuum pump arm. We carry the parent group's precision-machining and quality-control discipline: units are inspected on dedicated measuring equipment and serial-tracked, built on a balance of automated lines and skilled manual work.

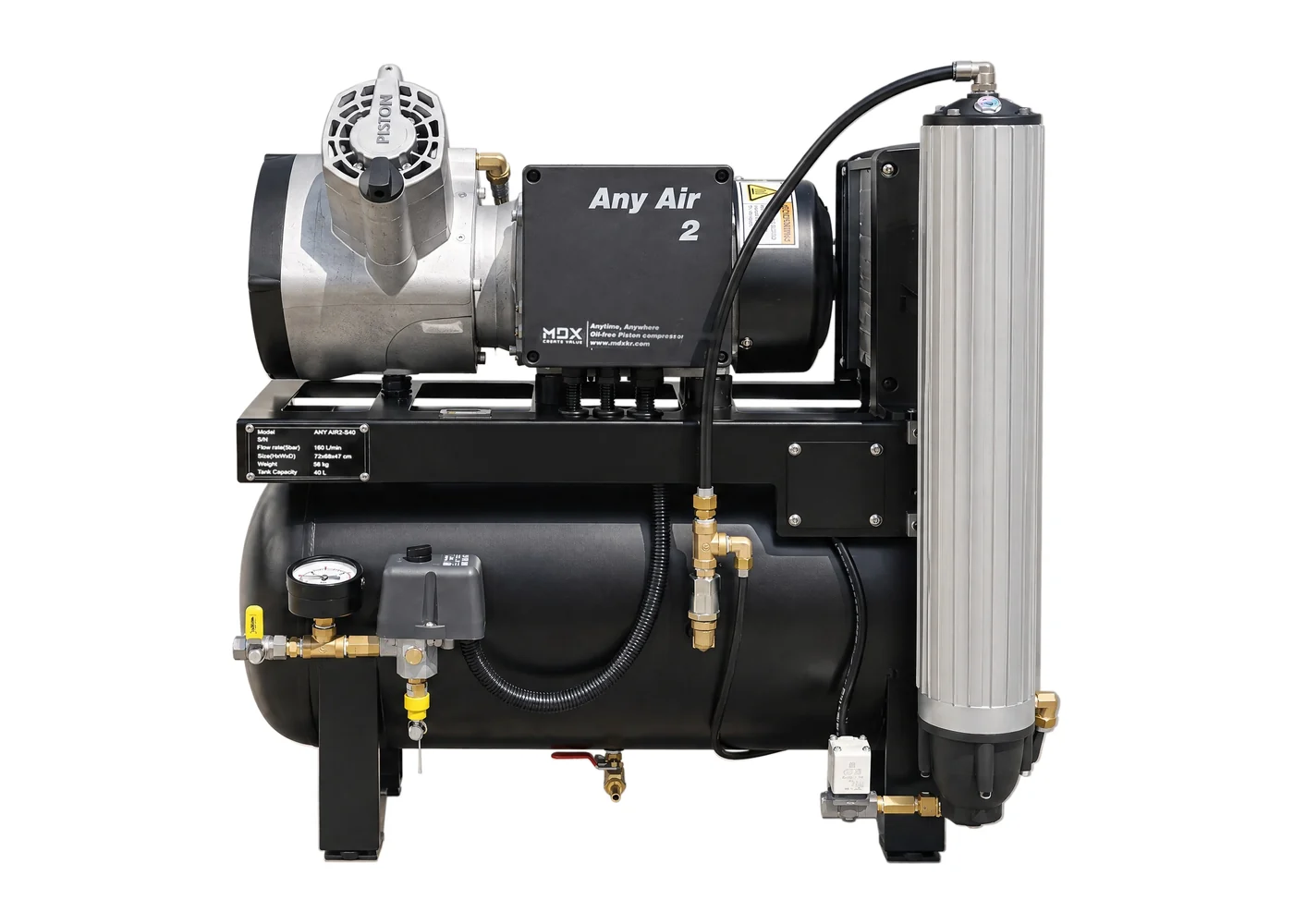

ANY AIR 2 puts that capability into a piston-type dental compressor. In Korea, MDX is essentially the only maker of articulated-piston dental compressors built in-house. With the AnyVac40 vacuum pump, it's our Korean alternative to the European compressor majors.

R&D

~6 years on articulated piston

Production

In-house, Korea

Certifications

UL · FDA

01 · The Real Cost

Cheaper today.
Expensive tomorrow.

Most clinics buy rocking-piston compressors for the low sticker price alone. But as breakdowns and repairs pile up, those early savings quickly disappear. Here's the same machine — viewed through total cost of ownership, not the spec sheet.

* TCO (Total Cost of Ownership) — the real lifetime cost of a machine: purchase price plus maintenance, repairs, and downtime.

Motion Comparison · Scroll

Watch the difference.

Rocking Piston

Doesn't run straight — it rocks. Uneven wear builds, durability fades.

VS

Articulated Piston

Strictly vertical travel — no uneven wear. Same power, same durability, over time.

5,000 h validated 100% duty cycle 5-year head warranty

Rocking Piston

Wobble · Conventional Type

Hidden TCO

Rocking Type · How It Works

Seals and housing wear with every cycle. Output pressure drops gradually — most units fall below spec inside 12–24 months.
Sensitive to heat under continuous load. Exceeding duty cycle accelerates failure. Not built for back-to-back appointments.
Typical warranty: 1 year on the head. Repair costs and downtime erase the initial price advantage after one major service.

Articulated Piston

ANY AIR 2 · Connecting-Rod Type

Lower TCO

Articulated Piston · How It Works

Piston moves on a single vertical axis. Lateral wear is eliminated by design — output stays stable for years, not months.
100% duty cycle, validated to 5,000 hours continuous. Runs all day across multiple chairs without thermal derating.
5-year head warranty. The longest in the dental-compressor category. Backed by serial-number tracking and registered service.
Integrated cooler, centrifugal separator, HEPA + ULPA 16. Patient-side air is dry, oil-free, and 99.9995% particle-free.

5-Year Lifespan · Illustrative

The gap widens every year.

1yr2yr3yr4yr5yr

Rocking Type

Output drops below spec; overheating risk climbs. It runs harder to compensate — typically past usable spec within 1–2 years.

Articulated Piston

Output holds. No wear-out, runs through heat — 5,000h / 100% duty cycle validated.

* Conceptual illustration of relative durability over time, not measured values.

02 · Engineering

Three
essentials.

AnyAir2 is built on 30+ years of MDMED precision machining.

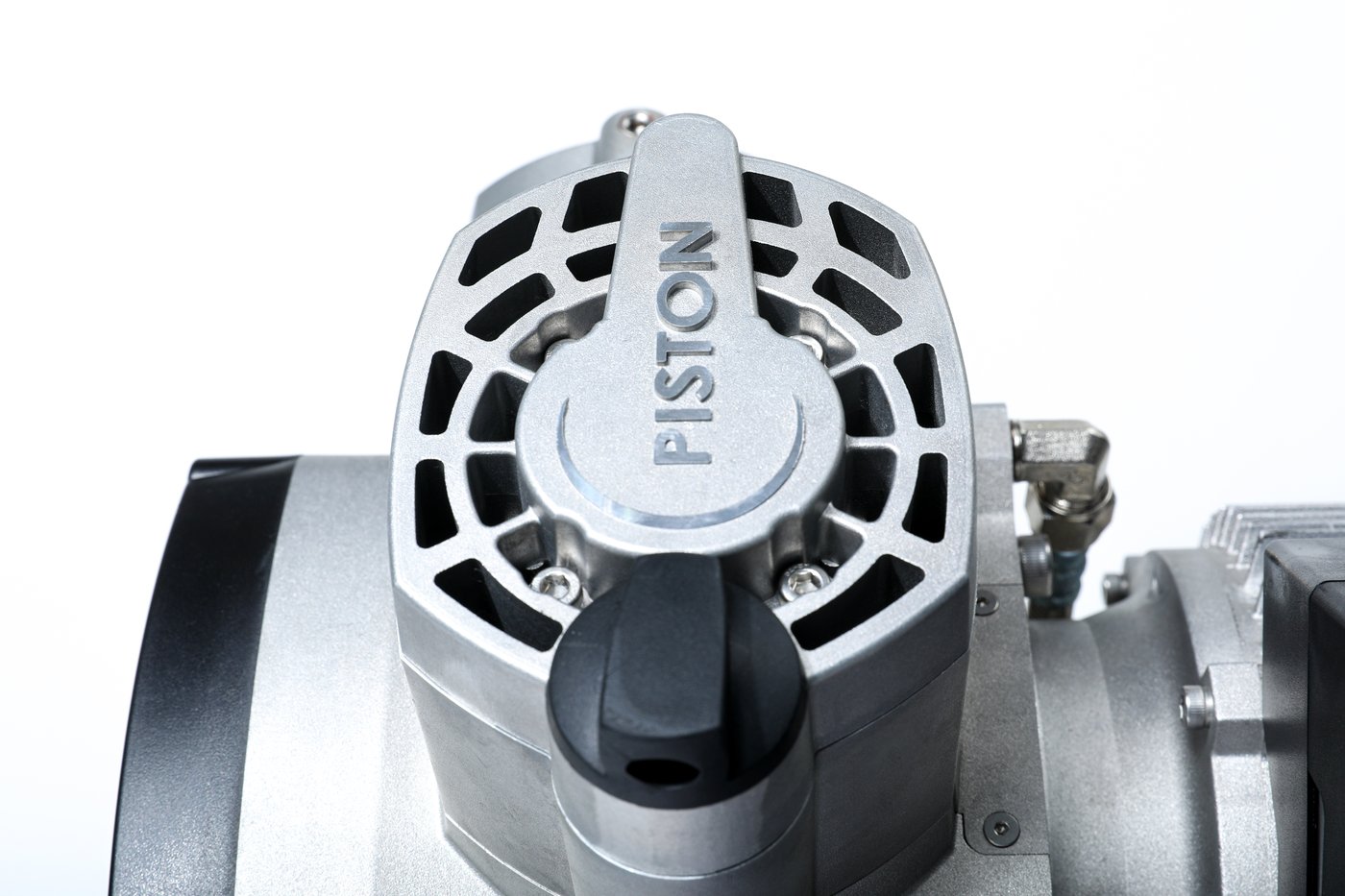

01 / Piston Head

Articulated motion.
Dual cooling.

VERTICAL TRAVEL · OIL-FREE

5,000h

Continuous test passed

The piston is driven by a connecting rod and travels strictly vertically. Lateral wear — the failure mode that kills rocking pistons — is engineered out. External-fan air cools the head twice on its way through: once over the casing, once through the cylinder chamber.

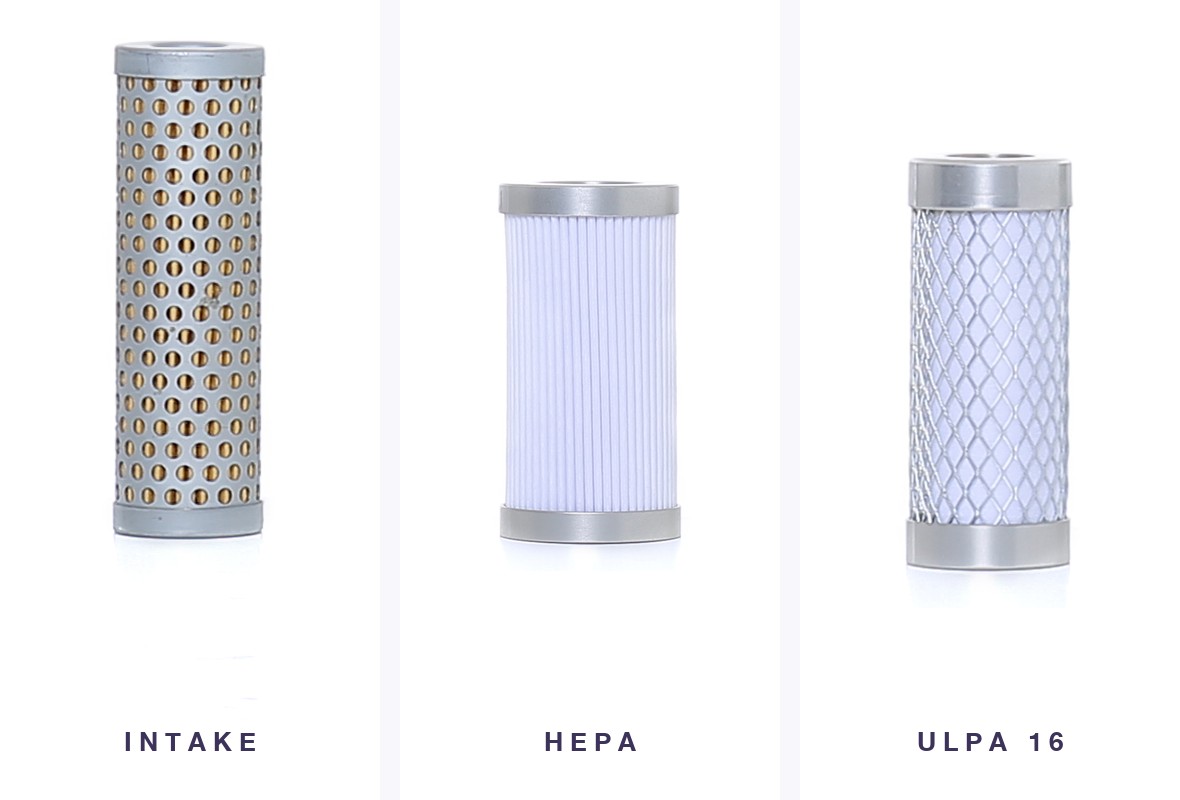

02 / Air Quality

Triple filtration
at patient grade.

INTAKE → HEPA → ULPA 16

99.9995%

Of 0.1–0.3 μm particles removed

Compressed air ends up in the patient's mouth via the handpiece and 3-way syringe. Every breath through the system passes through three stages — intake debris, HEPA, then ULPA 16 — inside a precision centrifugal separator. No silica gel to manage.

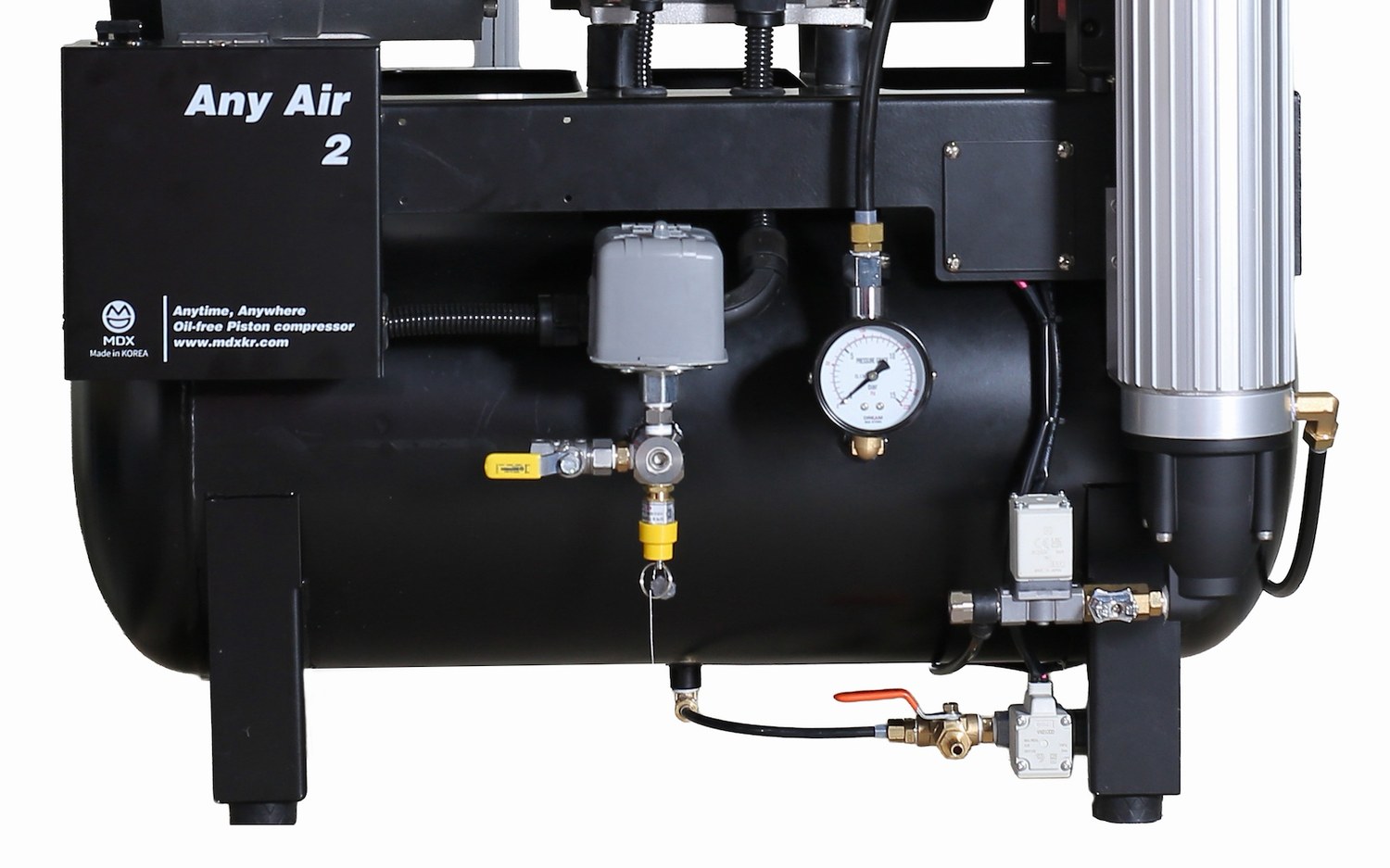

03 / Tank & Drain

Stainless 304.
Hybrid discharge.

SUS304 · DUAL SOLENOID

5yr

Head warranty · 1 yr components

Steel tanks rust. Aluminum is better. SUS304 is the right answer for medical air — corrosion-immune, food-grade, decades of life. Paired with a dual solenoid drain system that actively pulls moisture out during AND after every cycle.

03 · Hybrid Moisture Discharge

Moisture doesn't
wait for maintenance.

The best dryer is membrane — and the most expensive. So many compressors use silica gel, which performs well by adsorption — until it saturates. Once saturated, dew point rises and water vapor passes straight through. Worse, if the desiccant isn't replaced on schedule the granules cake into powder that clogs solenoid valves and can eventually reach the compressor head itself.

AnyAir2 takes a different route. A centrifugal separator removes droplet moisture — nothing to replace, nothing to clog. Because separators work on droplets rather than vapor, a small amount of residual moisture still condenses inside the tank as pressure and temperature shift. So two solenoid valves run in opposite directions to handle it: one drains continuously while the compressor runs, the other when it stops. The tank stays light on water even when Friday's drain check gets skipped — and the SUS304 stainless tank doesn't rust regardless.

Figure 1 · AnyAir2 airflow & condensate discharge

DUAL-SOLENOID FLOW

N/C · WHILE RUNNING

Tank Drain

Normally-closed valve at the tank base activates during operation — actively pushing condensate out as it forms.

N/O · AFTER STOP

Separator Drain

Normally-open valve at the dryer opens when the head stops — releasing moisture captured by the centrifugal separator.

        Result
        Continuous drain · SUS304 · No drain checklist


05 · MDX Compressor Lineup

One platform.
Four configurations.

From single-chair clinics to dental hospitals and labs — a compressor lineup matched to your practice.

PremiumBuilt to LastDental Lab

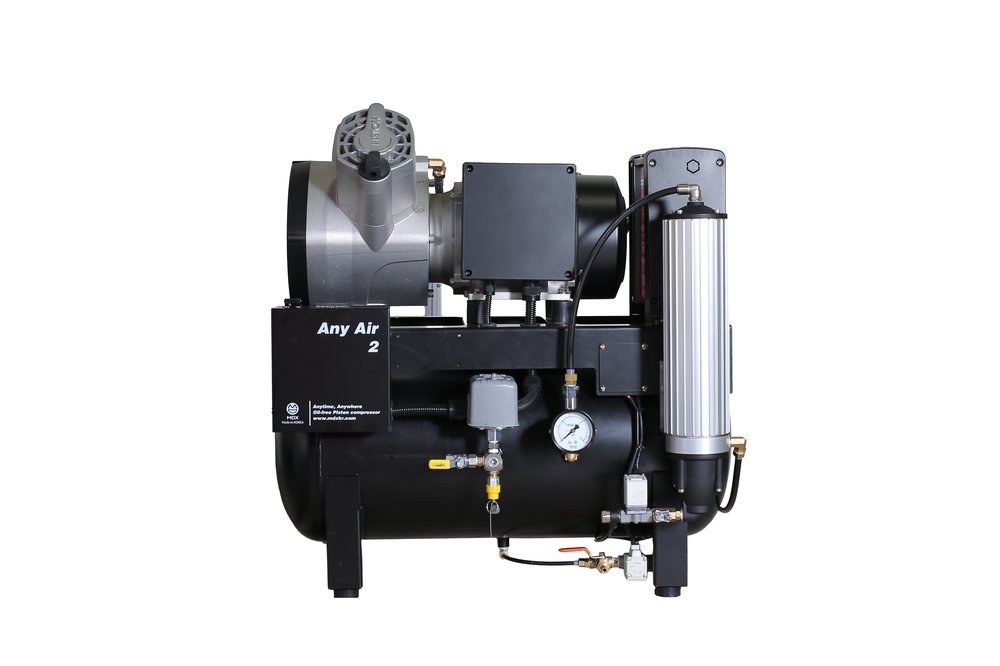

UL-CERTIFIED · ARTICULATED

ULFDA

Recommended Chairs3–4

2 HP45 L · SUS304

PremiumBuilt to LastDental Lab

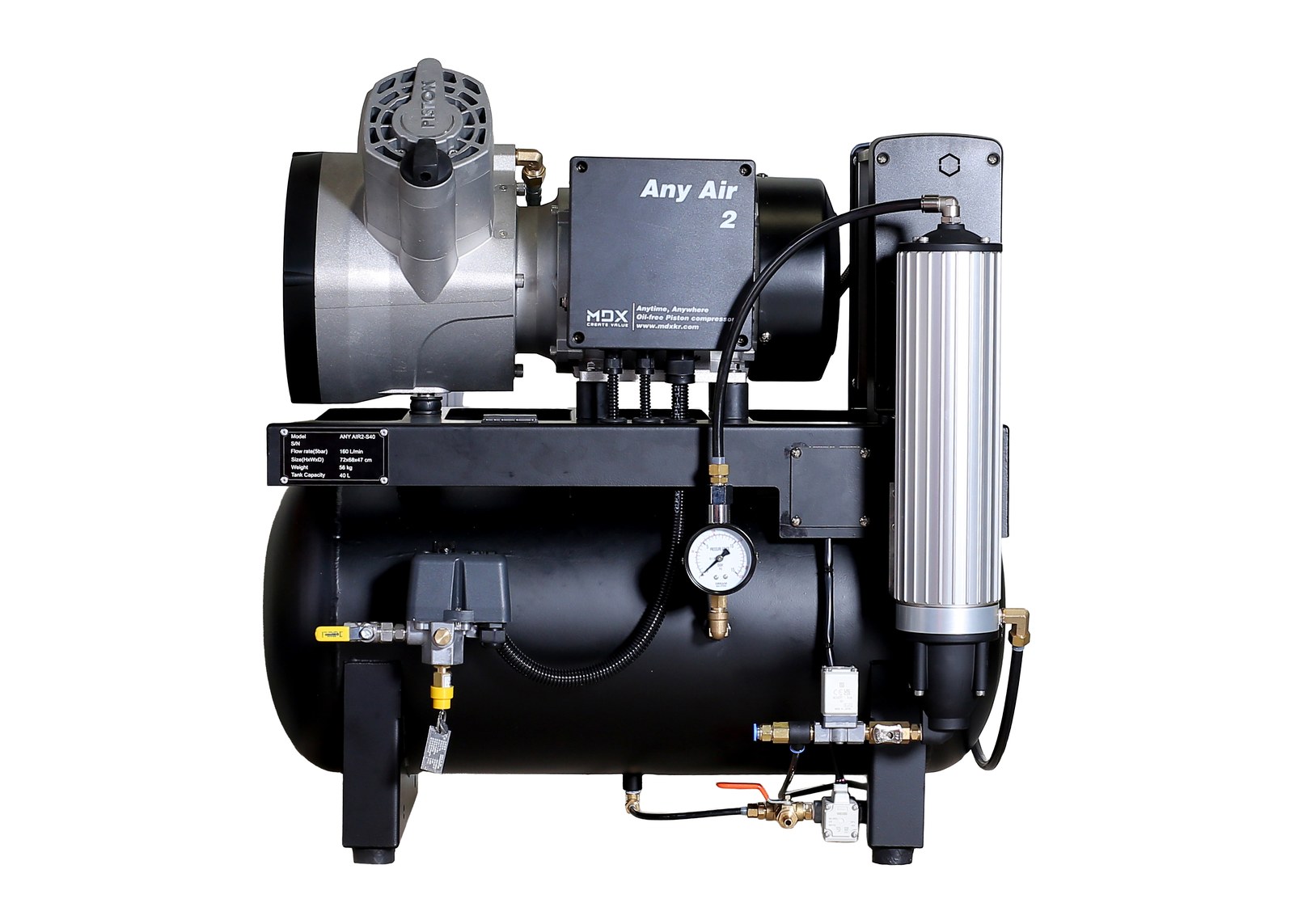

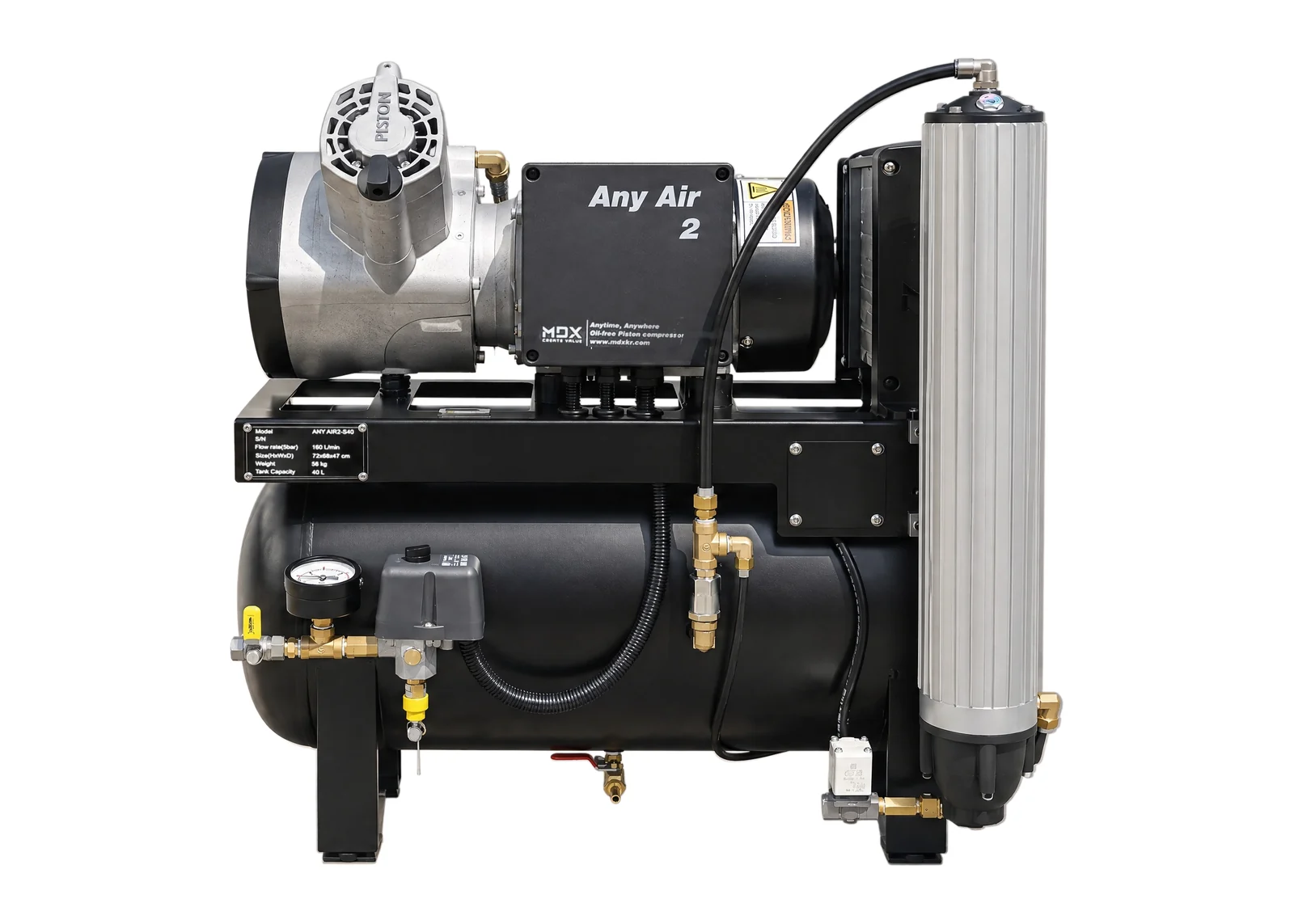

ANY AIR 2

EXPORT · ARTICULATED

Recommended Chairs3–4

2 HP40 L · SUS304

High CapacityDental Lab

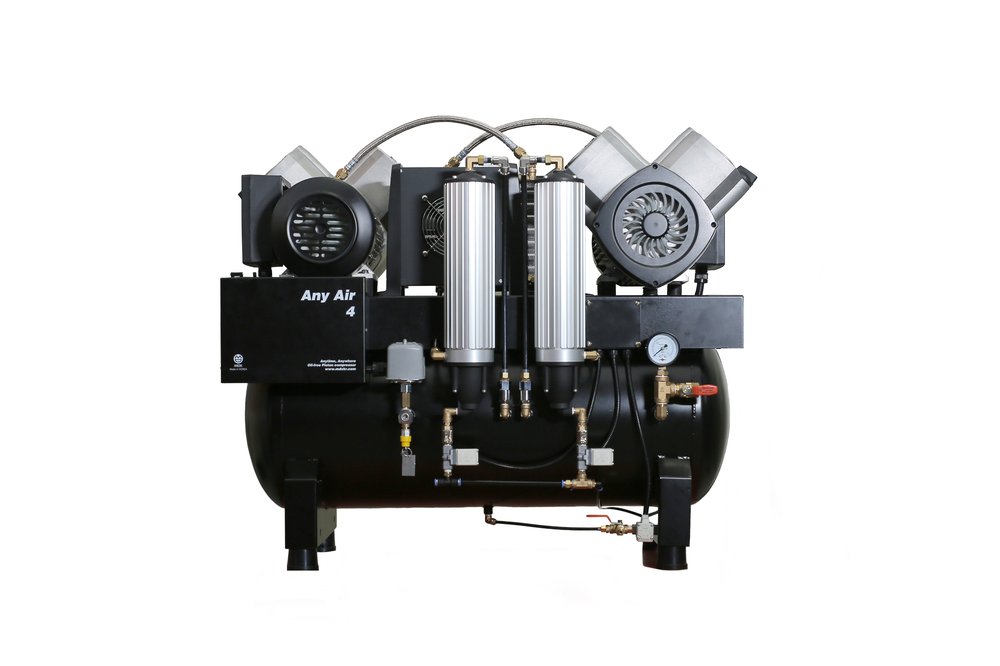

ANY AIR 4

DUAL-HEAD ARTICULATED

Recommended Chairs5–6

4 HP90 L · SUS304

ValueProven HeadSolo Practice

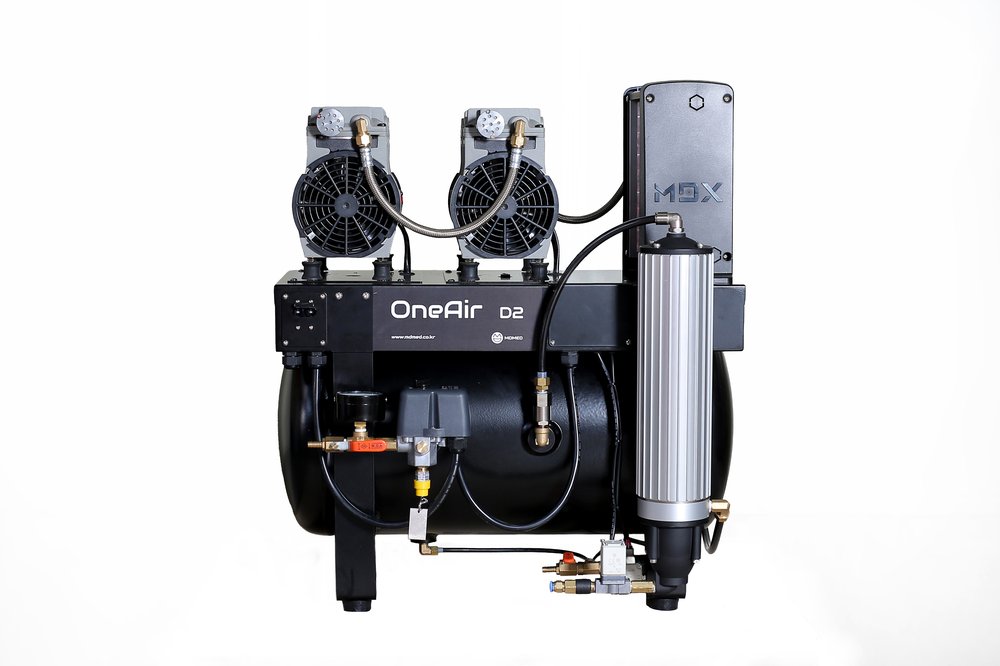

ONE AIR D2

ROCKING · THOMAS HEAD

Recommended Chairs1–2

2 HP40 L · Aluminum

← Swipe to compare models →

04 · The Numbers

Specifications.

Three models, one platform — from the 2 HP Any Air2 to the dual-head 4 HP Any Air4, plus the rocking-piston One Air D2 for cost-sensitive workflows.

ANY AIR 2

ONE AIR D2

ANY AIR 4

Type

Articulated Piston

Rocking Piston · Thomas Head

Articulated · Dual Head

Horsepower

2 HP

2 HP (1 HP × 2)

4 HP

Max Pressure

8 bar / 116 psi

7 bar / 100 psi

Flow Rate

125 / 160 L/min @ 5 bar

113 / 130 L/min @ 5 bar

CFM @80psi · 11.2

Tank

40 L · SUS304

40 L · Aluminum

23.7 gal (90 L) · SUS304

Voltage

220–240 V · 50/60 Hz

220–230 V · 50/60 Hz

220–240 V · 50/60 Hz

Weight

56 kg

37 kg

308 lb

Dimensions H×W×D

72 × 68 × 47 cm

68 × 60 × 45 cm

33″ × 40.5″ × 21″

Filtration

Intake · HEPA · ULPA 16

Warranty (Head)

5 Years

2 Years

5 Years
